PEVcharge PEV2500-20 Adjustable PEV Fast Charger – 100V–151V, 1A–20A

Compact 2500W Adjustable Fast Charging for Compatible PEV Systems

The PEVcharge PEV-2500-20 is a compact adjustable fast charger designed for riders who need flexible charging control, portable size, and high-power charging capability for compatible personal electric vehicles.

It supports an adjustable output voltage range of 100V-151V. Under 220V AC input, the charging current can be adjusted from 1A to 20A. Under 110V AC input, the charging current can be adjusted from 1A to 10A.

The charger supports both Bluetooth connection adjustment and touch screen adjustment, allowing users to select suitable charging settings according to their battery system, power source, BMS limit, charging port, connector, and cable capacity.

---

Key Highlights

• 2500W compact adjustable PEV fast charger
• Adjustable output voltage: 100V-151V
• Adjustable charging current: 1A-20A with 220V AC input
• 110V AC input support: 1A-10A adjustable charging current
• Bluetooth connection adjustment for convenient setting control
• Touch screen adjustment for direct on-device operation
• Included charging cable: XT90-XT60
• Included charging-port connectors: GX12-5P to XT60 + GX20-4P to XT60 + GX20-5P to XT60
• AC plug options: US / EU / UK / AU, choose one when ordering
• Compact body size: 21 × 10 × 4.3 cm
• Lightweight bare unit: approximately 1384g
• 6-month warranty for normal use

---

Adjustable Output Voltage

This charger supports an adjustable output voltage range of 100V-151V.

It is designed only for compatible PEV battery systems whose required actual full-charge voltage is within this supported output range.

In the electric unicycle industry, voltage is commonly described according to the battery’s full-charge voltage. Electric motorcycles, electric scooters, e-bikes, and some other PEVs are often described according to nominal battery voltage instead.

For example, a vehicle described as a “72V” model may have an actual full-charge voltage of approximately 84V. Therefore, compatibility must not be determined only from the nominal voltage printed in the vehicle name or product description.

Before ordering or using this charger, confirm your battery’s actual full-charge voltage. The required full-charge voltage must be within the charger’s supported output range of 100V-151V.

---

Included Charging-Port Connectors

This product includes the following three charging-port connector adapters:

• GX12-5P to XT60
• GX20-4P to XT60
• GX20-5P to XT60

These three charging-port connectors are included together with the product. They are not separate connector options.

Please confirm which connector matches your vehicle before use. The number of connector pins does not indicate the supported charging voltage.

A connector with the same appearance or pin count is not automatically compatible. The connector wiring and polarity must also be confirmed before charging.

If your vehicle uses a different charging connector, a separate compatible adapter may be required. Any additional adapter must support the selected voltage and charging current.

---

Included Charging Cable

This product includes an XT90-XT60 charging cable.

The included XT90-XT60 charging cable and the included charging-port connector adapters are separate parts of the charging connection system.

Before charging, confirm that the charging cable, connector adapter, vehicle charging port, and polarity are correctly matched.

Any cable or adapter used with the charger must be rated for the selected output voltage and charging current.

---

AC Plug Options

The AC power plug can be selected according to the customer’s region.

• US Plug
• EU Plug
• UK Plug
• AU Plug

Please choose one AC plug option when placing your order.

---

Adjustable Charging Current

The charging current can be adjusted according to the input power source, battery system, BMS charging limit, charging-port rating, connector rating, cable rating, and charging requirements.

• With 220V AC input: 1A-20A adjustable charging current
• With 110V AC input: 1A-10A adjustable charging current

A lower charging current can be selected for routine charging. A higher charging current may be used only when the battery, BMS, vehicle charging port, connector adapter, charging cable, wall outlet, and electrical circuit all support the selected current.

This charger has a total power rating of 2500W. The actual available charging current at a selected output voltage is also subject to the charger’s total power limit and the available input power.

The maximum adjustable current shown for each AC input condition does not mean that every compatible-voltage battery can safely accept the maximum current.

Never select a charging current higher than the maximum supported charging current of the battery, BMS, charging port, connector, adapter, cable, or vehicle.

---

Bluetooth and Touch Screen Adjustment

The PEVcharge PEV-2500-20 supports both Bluetooth connection adjustment and touch screen adjustment.

Users can adjust the supported charging settings through the Bluetooth connection or directly through the charger’s touch screen.

Before starting a charging session, always confirm that the selected output voltage and charging current are correct for the connected battery and vehicle.

---

Compact and Lightweight Design

The charger measures approximately 21 × 10 × 4.3 cm and has a bare unit weight of approximately 1384g.

Its compact body makes it easier to store and transport than larger high-power chargers, while still providing adjustable charging capability for compatible PEV battery systems.

---

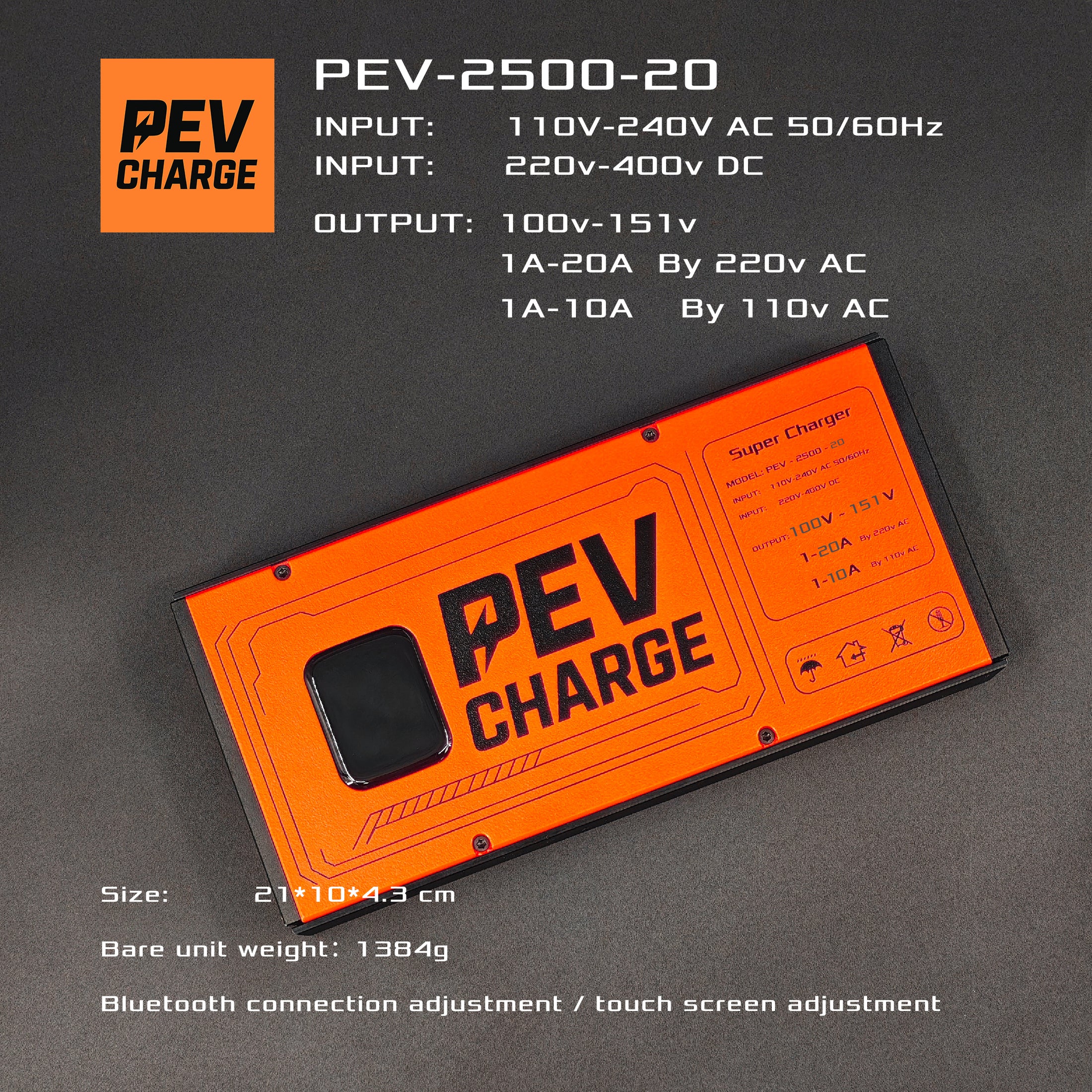

Specifications

Brand	PEVcharge
Model	PEV-2500-20
Total Power	2500W
AC Input	110V-240V AC, 50/60Hz
DC Input	220V-400V DC
Adjustable Output Voltage	100V-151V
Output Current With 220V AC Input	1A-20A adjustable
Output Current With 110V AC Input	1A-10A adjustable
Size	21 × 10 × 4.3 cm
Bare Unit Weight	Approximately 1384g
Adjustment Methods	Bluetooth connection adjustment / touch screen adjustment
Included Charging Cable	XT90-XT60
Included Charging-Port Connectors	GX12-5P to XT60 + GX20-4P to XT60 + GX20-5P to XT60
AC Plug Options	US / EU / UK / AU, choose one
Compatible Full-Charge Voltage Range	Required full-charge voltage must be within 100V-151V
Warranty Period	6 months

---

Suitable For

• Compatible electric unicycles
• Compatible electric scooters
• Compatible electric motorcycles
• Compatible e-bikes
• Compatible PEV battery systems requiring a full-charge voltage within 100V-151V
• Riders who need adjustable charging control in a compact charger body
• Users who understand their battery voltage, charging-current limit, connector type, polarity, and cable requirements

Compatibility with any specific vehicle or battery is not guaranteed solely because its required voltage is within the charger’s output range.

---

Compatibility Checklist

Before ordering or connecting the charger, confirm all of the following:

1. Actual full-charge voltage of the battery
2. Charging connector type
3. Connector wiring and polarity
4. BMS maximum charging-current limit
5. Vehicle charging-port current limit
6. Charging cable and adapter current rating
7. Available AC input voltage and electrical circuit capacity

Do not rely only on the vehicle’s nominal voltage name. If any compatibility information is unclear, please contact customer service before ordering.

---

Important Safety Notice

Confirm the battery’s actual full-charge voltage, charging-port type, connector wiring, polarity, BMS limit, charging-port rating, adapter rating, cable rating, and maximum supported charging current before ordering or using this charger.

Do not use an incorrect voltage setting or an unsupported charging current. Incorrect settings or incompatible connections may damage the battery, charger, charging port, connector, adapter, cable, or vehicle.

Do not assume compatibility based only on connector appearance, connector pin count, vehicle name, or nominal battery voltage.

This charger should be used only by customers who understand their product’s voltage, connector, polarity, cable, adapter, and charging-current requirements.

If you are not sure whether this charger is suitable for your product, please contact customer service before ordering or use.

---

What’s Included

• 1 × PEVcharge PEV-2500-20 Charger
• 1 × XT90-XT60 Charging Cable
• 1 × GX12-5P to XT60 Charging-Port Connector
• 1 × GX20-4P to XT60 Charging-Port Connector
• 1 × GX20-5P to XT60 Charging-Port Connector
• 1 × Selected AC Power Cable: US / EU / UK / AU, depending on the selected option

Electric unicycles, electric scooters, electric motorcycles, e-bikes, batteries, display devices, and any additional adapters or accessories shown in product images or videos are for demonstration reference only and are not included unless clearly listed above.

---

Shipping Notice

Shipping cost calculated at checkout.

Shipping availability and cost depend on the delivery address and selected shipping method. Some areas may not be available for delivery or may require additional shipping fees.

For special regions or unclear delivery areas, please contact customer service before ordering.

---

Warranty

This charger includes a 6-month warranty. Warranty coverage applies to normal use only.

Warranty does not cover damage caused by incorrect voltage settings, unsupported charging current, incorrect connector wiring, wrong polarity, misuse, water damage, physical damage, unauthorized modification, unsuitable adapter or cable use, or use with incompatible products.
